AL-KO AMS Mammut Caravan Mover

AL-KO AMS Mammut

The smart manoeuvring system for caravans.

AL-KO AMS Mammut has the power to move your caravan effortlessly. Inclines, kerbs and rough terrain can be overcome to position your van into exactly the right spot - without assistance.

At the heart of your remote control handset there is a joystick, this allows precise, variable speed control and seamless direction control.

The powerful drive system can overcome obstacles and kerbs upto 4cm high. The drive rollers have fuilly electronic control of engagement and disengagement. The sophisticated electronics ensure that the maximum allowable pressure is always applied to the tyres to give the best grip in all conditions.

Safety: AL-KO AMS Mammut can only be operated once the remote control handset is paired with the magnetic switch fixed to the A-Frame of the caravan.
The Mammut will automatically switch off after 100 seconds of inactivity.
Should the joystick be released on an incline, the roller will act as a braking mechanism, preventing the caravan from rolling away

Soft Start and Soft Stop: AMS Mammut provides a controlled, smooth start and stop when manoeuvring the caravan, with no "jerky" movements.

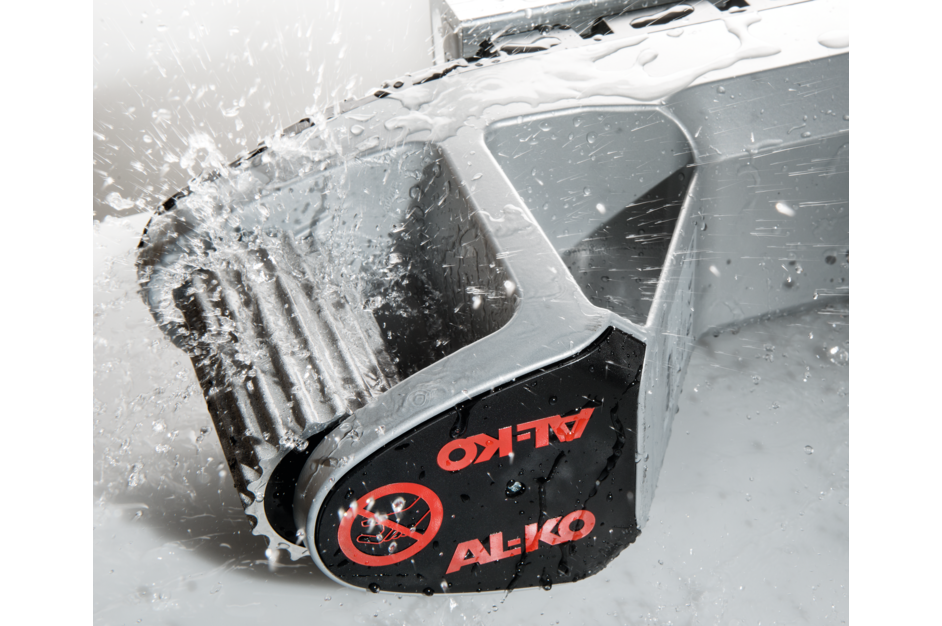

Sealed Drive Unit: The durable outer cover of AMS Mammut completely seals the unit from water ingress, and guarantees functionality even in wet conditions.

With a fully charged 80 Ah battery, AMS Mammut can be operated for up to 2 hours on level ground. At maximum loading on inclines the operating time is approximately 30 minutes.

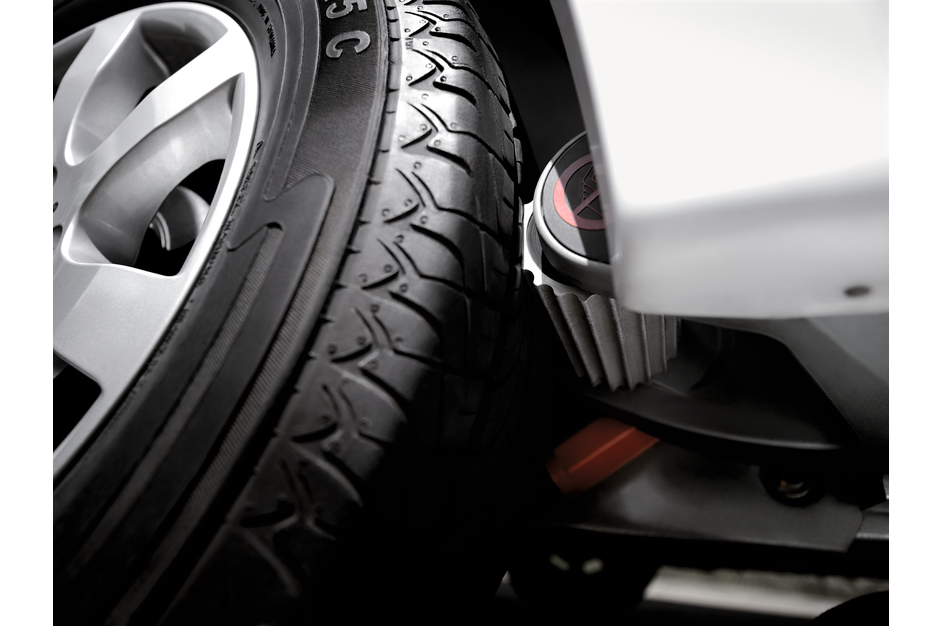

Fitting to a recent AL-KO Chassis

The integrated chassis version of AL-KO Mammut has been designed to fit within the longitudinal chassis member on recent AL-KO chassis with an embossed 'M'. In this case there is NO reduction in ground clearance. The overall system weight (without battery) for this version only 29 kilograms. The mover is fitted in front of the axle protecting the drive unit from stone chip damage.

Fitting to an older AL-KO or other manufacturer's chassis

For older AL-KO Chassis (prior to 2010 model year) and non AL-KO chassis, a version with the cross-bar clamped under the chassis members is available. This can be fitted either in front or behind the axle. Clearance between chassis member and road is reduced by approximately 50mm.

Click for more information on the Mammut variants.

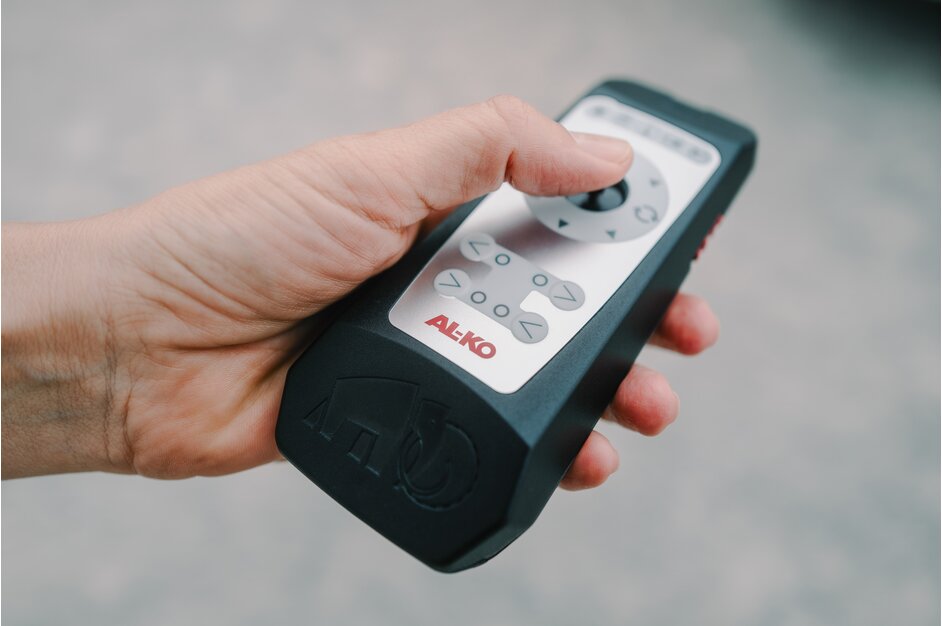

Radio Control Handset display:

LED indicators on the Mammut remote handset:

• System is ready
• Maximum climb ability reached
• Maximum Drive temperature reached
• Remote control battery power level indicator
• Drive unit battery power level indicator

Remote features:

• Simple one-handed operation via the joystick
• Continuous and very sensitive speed control
• stepless driving up to 360°
• Engage/disengage motors with caravan wheels

AL-KO Mammut features:

• Activation via magnetic switch on the handset (remote control)
• Automatic switch off after 100 seconds of inactivity
• Immediate stop on inclines when joystick released
• Full 360 degree on the spot rotation
• Maximum operating speed 0.5km/h (14 cm/s)
• LED operating indicators on remote control handset
• Infinitely variable speed control via the remote control joystick
• Continuously variable directional movement via the remote control joystick
• Manual drive roller engagement using 13mm hex wrench
• Drive completely sealed: splash-proof (water and dust sealed to IP65 rating).
• Power consumption: peak current 120 A
• Dormant power consumption: 5 mA

People who looked at the AL-KO Mammut caravan mover also looked at:
Powrtouch Heavy Duty Single, Reich Move Control, Royal Atlas, Truma SE R

AL-KO Mammut Mover Specifications

Designation	AMS Mammut
Versions:	Integrated/ Under chassis
Operational Voltage	12 Volt DC
Average Current Consumption	30 Ampere
Max Current Consumption	120 Ampere
Speed	14 cm/sec
Weight: Integrated chassis version For AL-KO 2010 Chassis	29kg
Weight: Under-chassis version	36kg
Permissible Overall Weight	2250kg
Permissible Overall weight on 15% Gradien	1800kg
Permissible Overall weight on 28% Gradient	1200kg
Power Source (caravan leisure battery)	12V 80Ah
AL-KO AMS Mammut Brochure

Download AL-KO Mammut Brochure (PDF)
